Full Seires of JOJO TOOLS
CNC Tool Holder Series2
Model No.: SK40/50-LBA/BST-RBA/RBJ
Origin: China
Place Of Origin: China
The SK Tool Holder For Boring, the SK tool holder for boring, is one of the commonly used accessories in precision machine tool machining. The SK (Schunk) tool chuck is known for its high precision and is suitable for applications requiring extremely high machining accuracy.

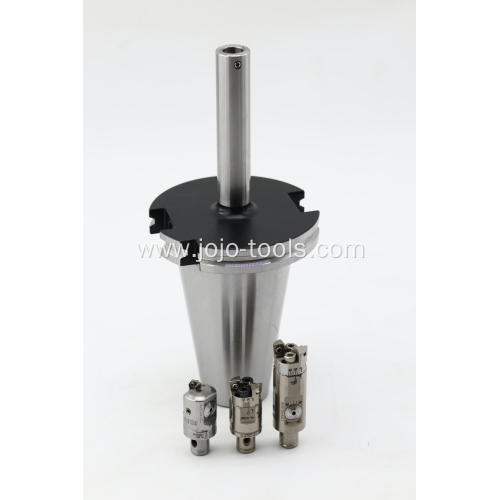

SK40/50-LBA/BST for Roughing Boring is specifically designed for use with SK40 or SK50 spindle tapers, which are common in CNC milling machines. It features a balanced design, which helps to minimize vibrations and improve tool life.
It is a reliable and versatile tool holder that is widely used in the machining industry. It provides a secure and stable connection between the cutting tool and the machine spindle, ensuring efficient and accurate machining operations.

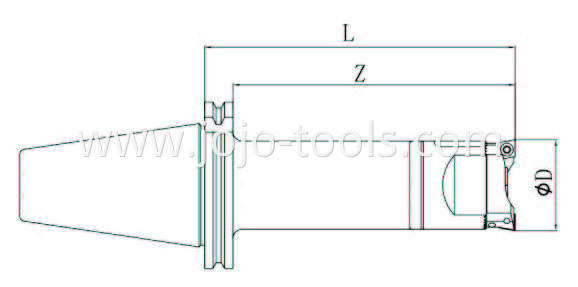

| SK40/50-LBA/BST for Roughing Technical Parameter | |||||
| Combination Parts | Boring Depth Z mm | Boring Range ФD mm | Bonding Type | L mm | |

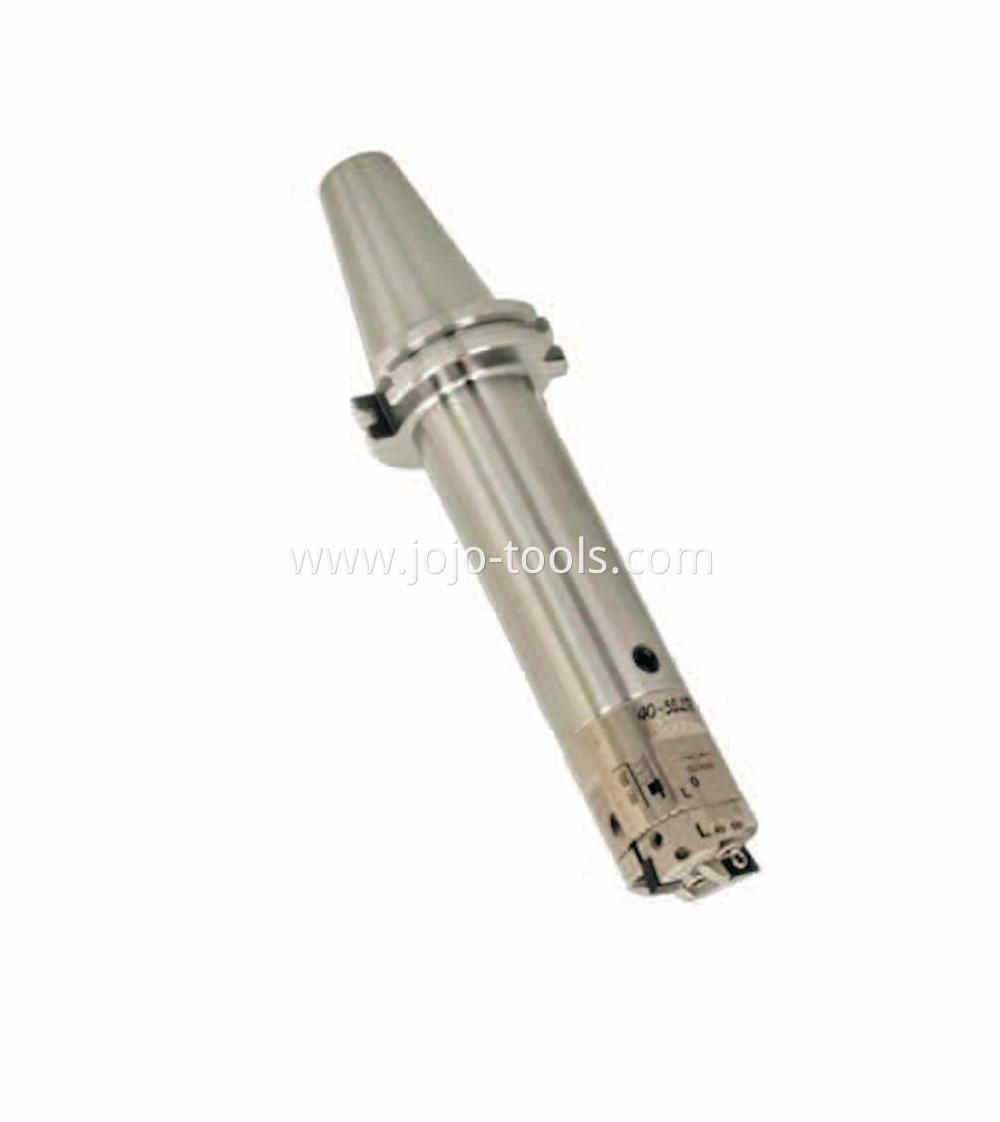

| LBA | RBA boring head | ||||
| SK40-LBA1-75 | RBA20 | 88.9 | 20-25 | LBA1 | 108 |
| SK40-LBA2-80 | RBA25 | 97.9 | 25-33 | LBA2 | 117 |
| SK40-LBA3-95 | RBA32 | 116.9 | 32-45 | LBA3 | 136 |
| SK40-LBA4-85 | RBA40 | 115.9 | 40-54 | LBA4 | 135 |
| SK40-LBA5-75 | RBA52 | 114.9 | 52-74 | LBA5 | 134 |
| SK40-LBA6-65 | RBA68 | 115.9 | 68-112 | LBA6 | 135 |
| SK50-LBA1-115 | RBA20 | 128.9 | 20-25 | LBA1 | 148 |
| SK50-LBA2-110 | RBA25 | 127.9 | 25-33 | LBA2 | 147 |
| SK50-LBA3-125 | RBA32 | 146.9 | 32-45 | LBA3 | 166 |
| SK50-LBA4-115 | RBA40 | 145.9 | 40-54 | LBA4 | 165 |
| SK50-LBA5-105 | RBA52 | 144.9 | 52-74 | LBA5 | 164 |
| SK50-LBA6-95 | RBA68 | 145.9 | 68-112 | LBA6 | 165 |
| Combination Parts | Boring Depth Z mm | Boring Range ФD mm | |||

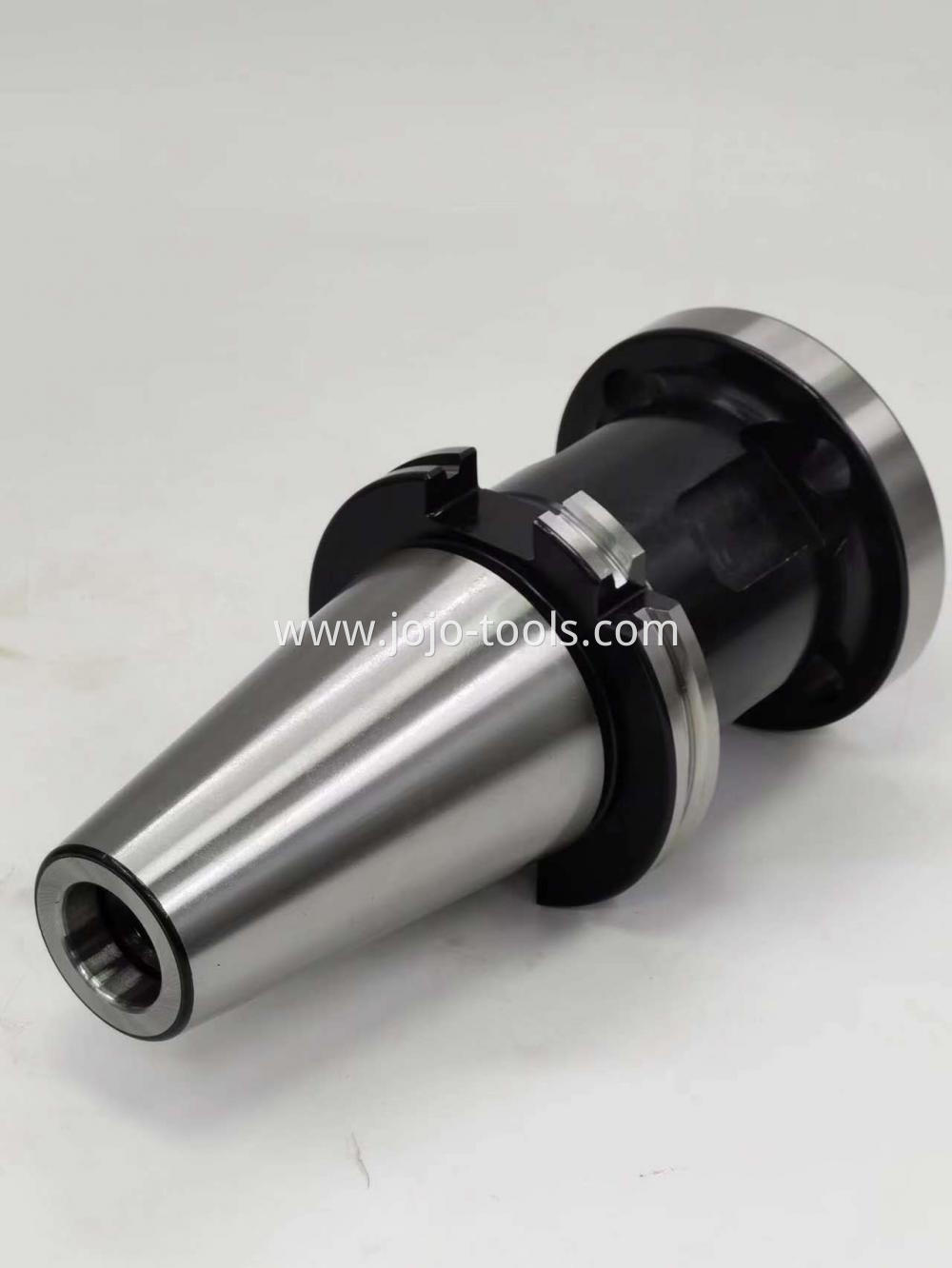

| BST | RBA Boring Head | ||||
| SK50-BST-100 | RBA110 | 179.9 | 110-160 | ||
| SK50-BST-150 | RBA110 | 229.9 | 110-160 | ||
| SK50-BST-200 | RBA110 | 279.9 | 110-160 | ||
| SK50-BST-250 | RBA110 | 329.9 | 110-160 | ||
| SK50-BST-300 | RBA110 | 379.9 | 110-160 | ||
| SK50-BST-350 | RBA110 | 429.9 | 110-160 | ||
| SK50-BST-400 | RBA110 | 479.9 | 110-160 | ||
| SK50-BST-100 | RBA160 | 179.9 | 160-204 | ||
| SK50-BST-150 | RBA160 | 229.9 | 160-204 | ||
| SK50-BST-200 | RBA160 | 279.9 | 160-204 | ||
| SK50-BST-250 | RBA160 | 329.9 | 160-204 | ||
| SK50-BST-300 | RBA160 | 379.9 | 160-204 | ||
| SK50-BST-350 | RBA160 | 429.9 | 160-204 | ||
| SK50-BST-400 | RBA160 | 479.9 | 160-204 | ||
| Combination Parts | Boring Depth Z mm | Boring Range ФD mm | |||

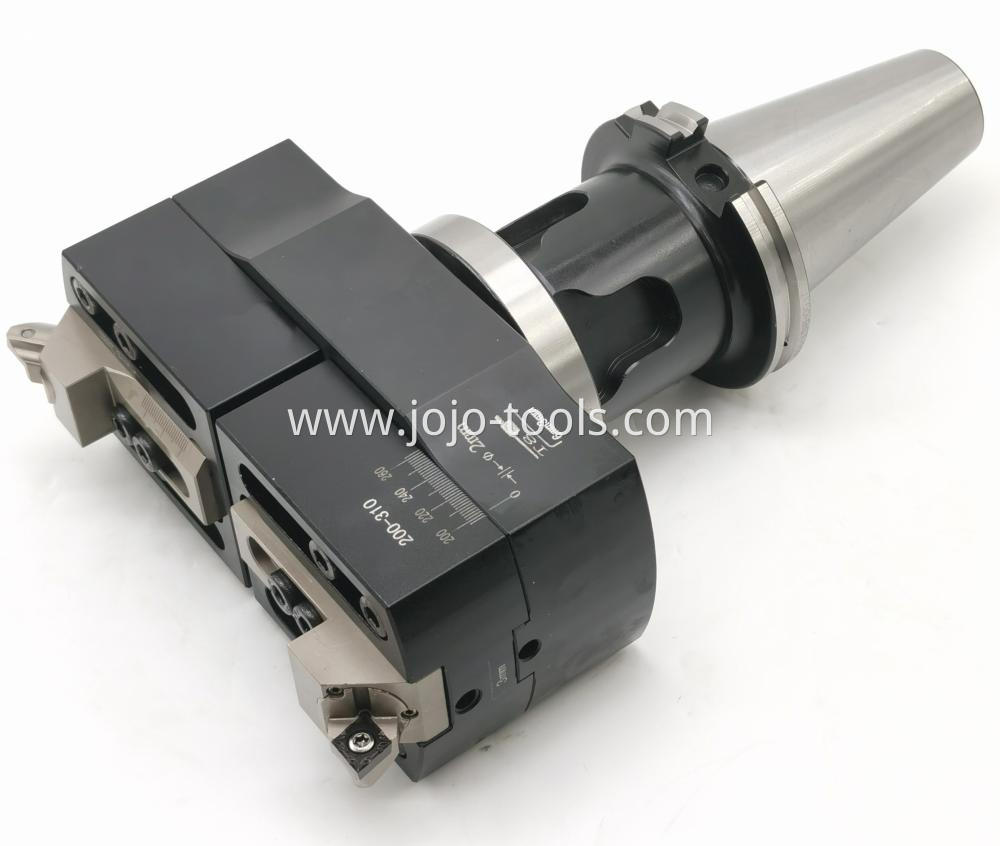

| BST | CBJ Boring Head | ||||
| SK50-BST-100 | CBJ200 CBJ300 CBJ400 CBJ500 CBJ600 CBJ700 CBJ800 | 187.9 | 200-310 300-410 400-510 500-610 600-710 700-810 800-910 | ||
| SK50-BST-150 | 237.9 | ||||
| SK50-BST-200 | 287.9 | ||||
| SK50-BST-250 | 337.9 | ||||
| SK50-BST-300 | 387.9 | ||||
| SK50-BST-350 | 437.9 | ||||
| SK50-BST-400 | 487.9 | ||||
| Selling Units | : | Set/Sets |
|---|---|---|
| Download | : |
|
